Name: BestCode Model 88S Security System
Brand: BestCode
Rating: 5 (11 reviews)

Invisible Ink Technology that Stands Guard

The BestCode model 88s security system from Intech Solution redefines what it means to protect your products. With its advanced UV light printer technology, this system prints high-resolution, invisible codes that remain unseen to the naked eye, only becoming visible under ultraviolet light.

Ideal for manufacturers facing issues with product piracy or looking to improve traceability, this BestCode security printer is tailored for real-time identification and product-level authentication. It ensures your products are marked clearly, but invisibly, maintaining the integrity of your packaging and design while embedding secure codes directly onto surfaces like plastic, glass, metal, and more.

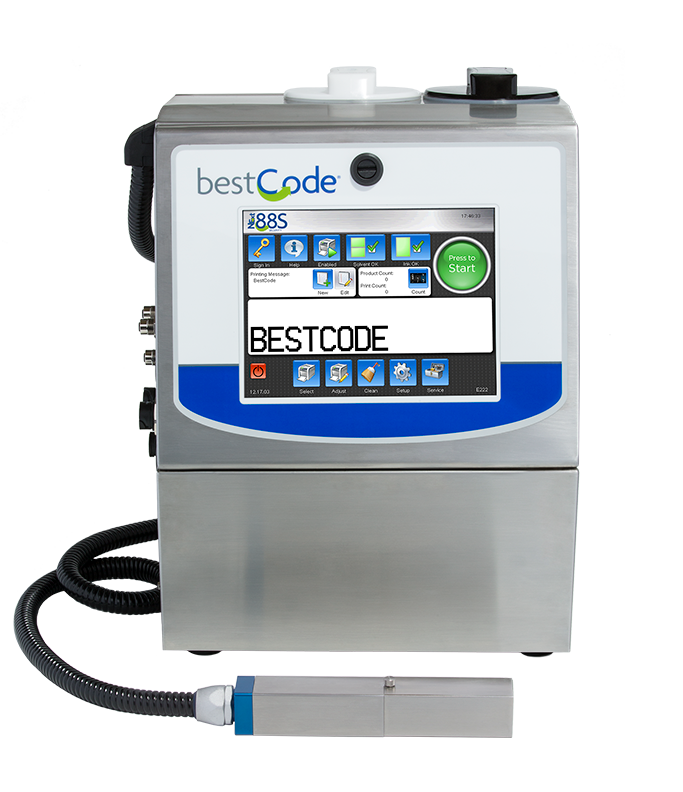

BestCode model 88s security system Intech Solution

CleanStart™—automatically cleans printhead eliminating daily and weekly cleanings.
10.4" Color Touch Screen—always on, vivid display with large intuitive buttons and status indicators.
OneTouch™—single step operator functions reduce operator steps.
Large Volume Ink Tanks—extend time between fluid additions to weeks or months.
On-the-Fly External Ink Filling—accomplished in less than a minute with no waste.
AutoOff™ Go Home Button—automate and eliminate time consuming end of day manual routines.

Model 88s Security System Specifications

Technology	Continuous Ink Jet (CIJ) Technology, Single Printhead Control
User Interface	10.4" (264 mm) Color LCD, Touch Screen, Icon based – Graphical User Interface (GUI)
Lines of Print	1 - 5 Lines, 25 Pixel
Print Fonts	5, 7, 9, 12, 16, 19, 25, 32
Adjustable Print Height	.06" (1.5 mm) - .50" (12 mm)
Optional Print Height	.10" (2 mm) - .75" (19 mm)
Print Speed	1 Line: 1500 feet/minutes (470 meters/minute), 2 Line: 345 feet/minutes (108 meters/minute), 3 Line: 173 feet/minutes (54 meters/minute), 4 Line: 119 feet/minutes (36 meters/minute), 5 Line: 114 feet/minutes (35 meters/minute)
Ink Throw Distance	True Non-Contact Printing, .5" (12 mm) - 2" (50 mm)
Electronic Hardware	32 Bit ARM 9, 208 Mhz Processor
Memory Storage	4 GByte Solid State Drive, 15 MByte Flash, 128 Mbyte RAM, USB Interface (thumb drive)
Machine Interface	RS232, Ethernet
Inputs	1 Photocell, 1 Photocell or Programmable Input, 1 Shaft Encoder, 8 Field programmable inputs, Remote Message Selection option – 256 possible selections
Outputs	4 Alarm Outputs, 1 Relay Output
Enclosure	Stainless Steel Enclosure
Ingress Protection	IP65
SmartFilter™ Life	10,000 hours
Operating Environment	Temperature: 32°- 122° F (0°- 50°C), % Relative Humidity: 10 - 90% (non-condensing)
Electrical Requirements	Auto Ranging: 100 - 240 VAC (3 Amp), Frequency 50 - 60 Hz, Power Consumption: 50 W
Compliance	CE Certified, RoHS Compliant
Message / Code Creation	Dynamic Message Storage (over 1000 Messages), WYSIWYG Message Editing, Drag / Drop Field Based Formatting, Multi-National (Unicode) Character Printing, Download Fonts, Integrated Font Editor, Real and Expiration Time and Date, Shift and Rollover Functions, Product and Batch Counting, Remote Count Resets, Download Graphics and Integrated Graphic Editor, Continuous and Repeat Print, Auto Reverse / Traverse Print
Operation Features	Icon Based Operation, Single Button Start, Single Button Stop / Power Off, Password Security, Automatic Diagnostics, Error and Activity Logs, Service Reminders, Backup / Restore Functions, USB Load Firmware Updates, All Operator Languages, Download Languages
Ink Delivery	SmartFill™ Ink Bottle: 32 oz (946 ml), SmartFill™ Makeup Bottle: 32 oz (946 ml)
Fluid Capacity	Ink Capacity: 68 oz (2 liters), Makeup Capacity: 102 oz (3 liters)
Ink Types	Quick Dry to Immediate (1 second or less)
Ink Colors	Invisible, UV Read with UV Light - lights up Bright Blue
Specialist Inks	Thermo Color Change, Wet Bottle, Caustic Washable, Plastic, Eco-Friendly, Alcohol Resistant, Military Spec, Wet Bottle
Printhead Umbilical	10 feet (3 meters), 15 feet (4.5 meters) option
Printhead Options	Right Angle Printhead
Printing	Printhead Orientation – Omnidirectional
Weight	45 lbs (20 kg)
Optional Accessories	Alarm Beacon, Photocells, Mountings, Shaft Encoder, AirFlow™ Positive Air Kit (for high dust), Printhead Wash Station

Built for More than Barcodes

The BestCode model 88s security system is not just another marking printer, it's a precision coding engine designed to generate encrypted, serialized data directly onto products. Supporting both 1D and 2D barcode formats including QR Codes and DataMatrix, the 88S goes beyond traditional inkjet coding by embedding company-specific serialization information within each printed code.

Thanks to its ability to print in real-time, the 88S adapts to production line conditions without delays. Whether you’re producing 500 or 50,000 units a day, this BestCode security printer keeps up while delivering consistent code quality, even on high-speed lines.

Invisible ink applications mean no alteration to product aesthetics or labeling, allowing brands to maintain visual uniformity while quietly introducing a critical layer of protection.

Integration Without the Headache

The BestCode model 88s security printer integrates easily into existing production systems, thanks to standard RS232 serial communications and programmable I/O interfaces. This simplifies the process of remote operation and status monitoring, making it an easy addition to smart factories and Industry 4.0 frameworks.

This BestCode security printer ensures precise alignment with your traceability objectives. With its versatile printhead, you can apply codes on curved, uneven, or non-porous surfaces without sacrificing readability under UV light.

Why It Matters - Invisible Security in a Visible World

The BestCode model 88s security system gives you an edge by introducing invisible security features directly onto your products at the point of manufacture.

This UV light printer is not just about printing secret codes; it’s about building trust with customers, partners, and regulators. Every code it prints serves as proof of origin, enhancing authentication and supporting anti-diversion programs.

The Model 88S fits effortlessly into existing lines, requires little maintenance, and offers unparalleled value in high-volume environments. It’s the BestCode security printer solution trusted by brands committed to protecting what matters.

Intech Solution For You!

If you're looking for a way to add secure, covert coding to your products without disrupting your packaging design or production flow, the BestCode model 88s security printer from Intech Solution is an ideal fit. With reliable performance, minimal maintenance, and cutting-edge UV light printer capabilities, it’s not just a printer, it’s your front line against counterfeiting.

Prove your product's origin. Stay ahead of threats with the BestCode security printer that delivers performance, precision, and peace of mind.
