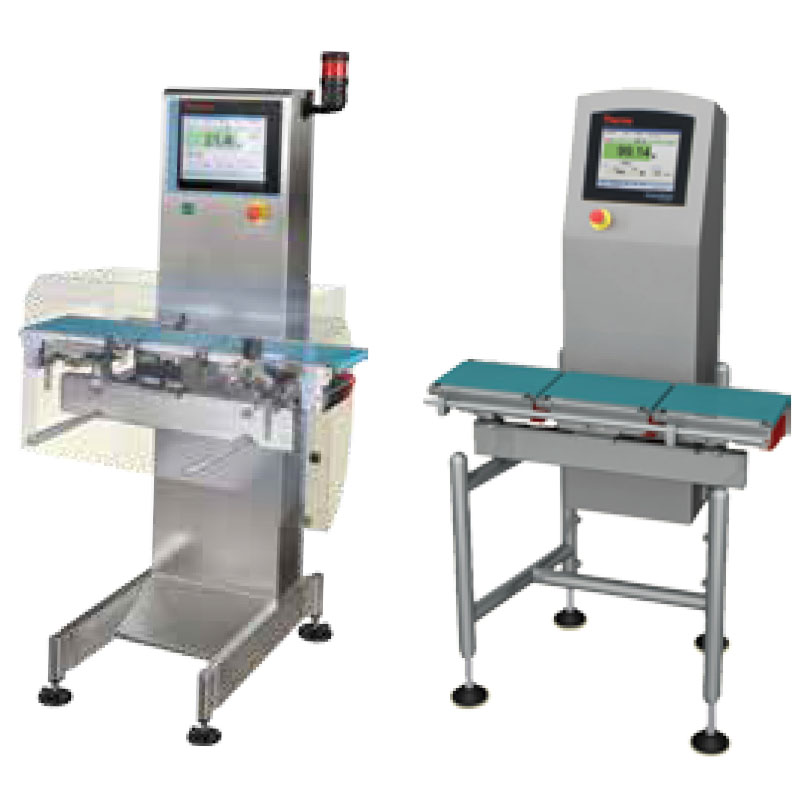

Thermo Scientific Global Versa Checkweighers

Why Choose Thermo Scientific Global Versa Checkweighers

The Thermo Scientific Global Versa Checkweighers are built for those who need reliable weight inspection without delays, waste, or guesswork. Designed with over 50 years of experience behind them, these checkweighers bring together solid engineering and field-tested performance.

The Global Versa Checkweighers come in two main types, the Global VersaWeigh and the Global Versa GP, and both are approved by OIML MID and other global standards. With advanced auto-zero features, they maintain accurate readings over time and keep your production in check, regardless of environmental changes.

If you’re dealing with various product types, boxes, pouches, bottles, or jars, this system can keep up. With a weighing range of 10g to 10kg and speeds of up to 400 packs per minute (depending on product), the thermo scientific Versa weigh system is a smart choice for companies that value both speed and precision.

Contact Us
...

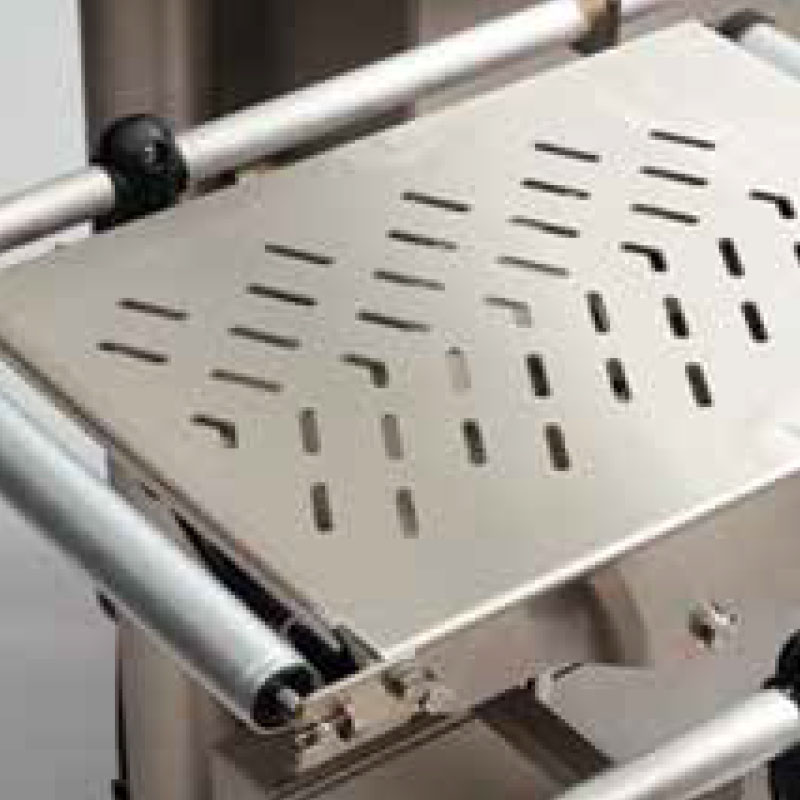

Sanitary Design and Ease of Maintenance
  • Frames designed to minimize flat surfaces and slots, reducing food buildup.
  • Stainless steel conveyor beds • Optional stainless-steel rollers and load cells
  • Rapid-release conveyors and belts eliminate need for tools to remove or replace
  • Tool-less thumb screw adjusts belt tracking
  • Captive conveyor rollers easy to adjust
...
Versatility and Ease of Use

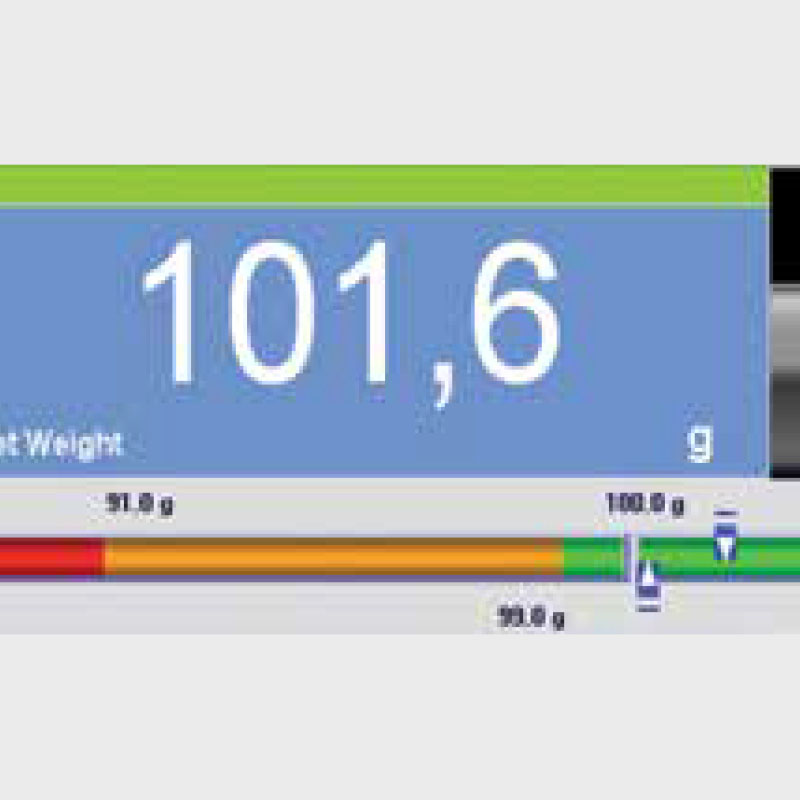

  • Easy-to-read color touch screens
  • Configurable security access levels
  • Intuitive menu operation
  • Choice of 16 standard languages
  • Our proprietary ‘Weigh Engine’ uses the powerful signal processing of Thermo Scientific™ AutoCalc™ for ease of product set up. Modular electronic design allows easy repair if needed.
...
Custom Solutions

Building on a foundation of standard features, these checkweighers can be modified to create cost-effective solutions for the most demanding applications. A wide variety of product handling and reject hardware and software options are available, including dual- and multilane.

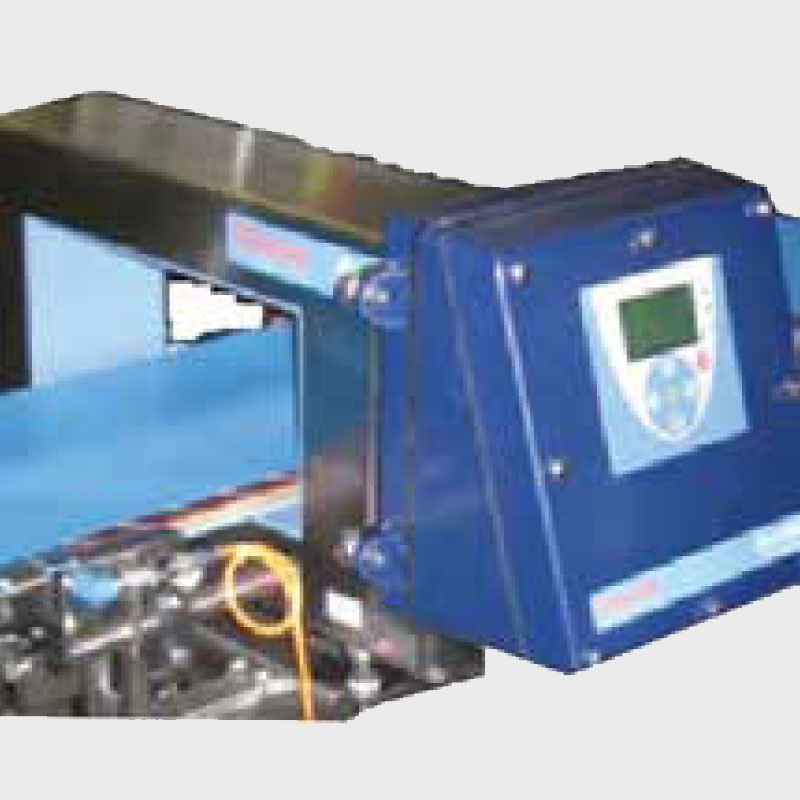

All Global VersaWeigh and Global Versa GP checkweighers are offered with integrated or stand-alone infeed Thermo Scientific™ APEX metal detectors.

Specifications

Thermo Scientific Versa Checkweighers

Weighing Range 10g to 10kg
Product Rate Up to 400 packages/min (depending on application)
Product Type Any, including cartons, bags, cups, bottles, jars, pouches, boxes, etc.
Product Dimensions Length: 25 mm to 600 mm. Maximum width 400 mm. Other product sizes upon request.
Accuracy Random error: to OIML R51 International Standards. European MID Standards and Handbook – 44 U.S. standards or better.
Actual accuracy may differ depending upon package weight, speed, stability and roller type.
Service Specifications Electrical – 110/120 or 220/240 VAC, 50 or 60 HZ, single phase 15 A Max Air – Dry, 550-690 kPa, 5.5-6.9 bar (80-100 psi) » 1,000 I/min (35 CFM)* *Depending on application and configuration.
Overall Dimensions Length: 750 mm to 2000 mm for integral conveyors (2800 for free-standing conveyors) (excl. additional free-standing conveyors). Width: approx. 600 to 1500 mm depending on configuration
Line Height USA: 650 mm~1100 mm (+100-80 mm) EU: 800~1100 mm GP model: 630 mm~1150 mm ±50 mm
Approvals or Standards CE Low-Voltage Directive 2006/95/CE
CE Machinery Safety Directive 2006/42/CE
CE Electro-Magnetic Compatibility Directive 2004/108/CE and CSAUS
Complies with EC Directive 2002/95/EC
MID/OIML 35~1200g e≥0.5 (to 48 kg) 72 m/min.
Ingress Protection IP65 IP66 optional
Material Frame: 304 grade Stainless Steel (bead blast finish). Cabinet and conveyor beds (4b finish).
Rollers: hard anodized aluminum or SST (option); load cell aluminum or SST (option)
Belts: Urethane FDA Blue UU20 or FDA Blue E2/1~E3/1 type depending on conveyor dimensions and application
Pollution Degree Pollution degree II
Weight Classification Zones 3 or 5 zone selectable. Special versions for random package weighing (warehouse).
Other Applications (option) Multi Lane, Tare Gross, Multi product, marking & verification (track and trace), Class Y, Grader, OEM, specials

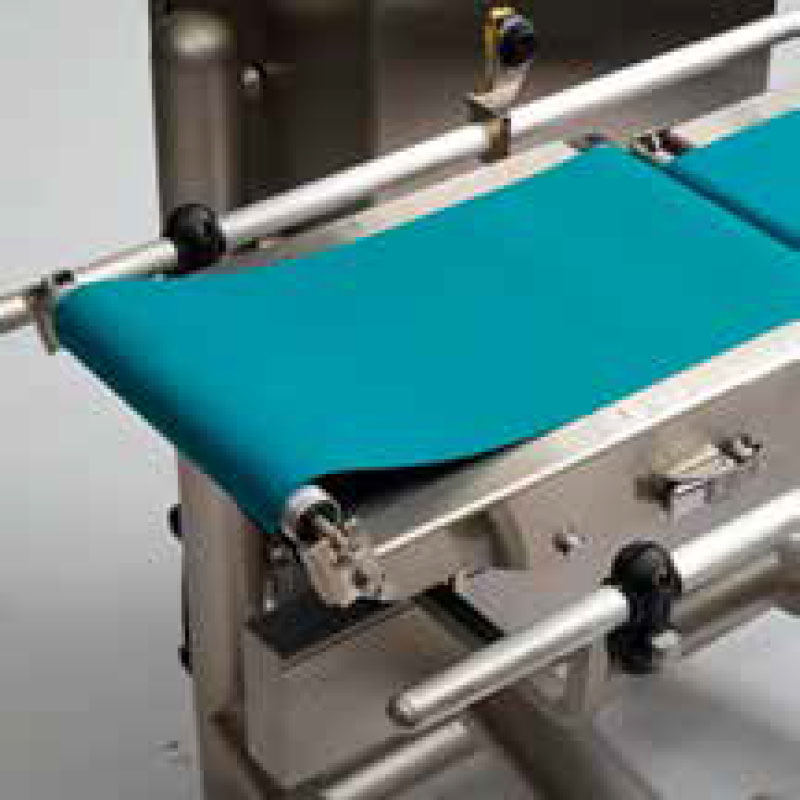

Strong Design That Simplifies Maintenance

When it comes to daily operations, even the best machines become a burden if they’re hard to clean or fix. That’s why the Thermo Scientific Global Versa Checkweighers are designed with maintenance in mind. The conveyor bed is made of stainless steel and comes with options for stainless rollers and load cells too. The rapid-release system lets your staff remove belts or conveyors without tools.

This user-friendly design helps avoid downtime and keeps the checkweigher running at full speed. From fast cleaning to easy part access, every detail is designed for the real-world factory floor.

Smart Features That Make the Job Easier

Operating a checkweigher machine shouldn’t feel like solving a puzzle. With Thermo Scientific Global Versa Checkweighers, everything is designed to be clear and simple.

If you ever need to repair the electronics, the modular design allows for fast replacement of parts. The goal of the thermo scientific versa weigh system is simple, give you a reliable checkweigher that’s easy to operate, adjust, and fix. That way, you stay focused on your production, not your machines.

Custom Options for Any Line Setup

No two production lines are exactly the same, which is why Global Versa Checkweighers are built with flexibility in mind. You start with strong standard features, and then add what you need based on your application. From reject systems to handling modules, there’s a long list of options that help you get the most out of your setup.

Need a checkweigher that works in a multi-lane system? Or one that integrates with tare/gross weight features, track and trace, or even grading? The Thermo Scientific Global Versa Checkweighers can handle all of that.

Get speed, accuracy, and compliance in one unit with Intech Solutions industrial coding solutions. The Global Versa Checkweighers are made to simplify weight control in high-speed production.
