BestCode Model 88S Micro System

High Resolution. High Speed. Micro Size Character Capable

Introducing the BestCode Model 88S Micro System

When your production demands sharp, small, and high-speed marking, the BestCode Model 88S Micro System from Intech Solution is engineered to deliver. This micro inkjet printer is purpose-built for industries that require high-resolution or micro-size characters on small surfaces—like electronics, cosmetics, pharmaceuticals, wire & cable, and more.

Designed with reliability and minimal maintenance in mind, the BestCode model 88s micro prints essential data such as expiration dates, lot codes, sell-by dates, barcodes, and custom graphics directly onto nearly any substrate.

The Model 88S Micro System is part of Intech Solutions broader range of micro printers known for their performance, scalability, and intuitive interface.

Contact Us

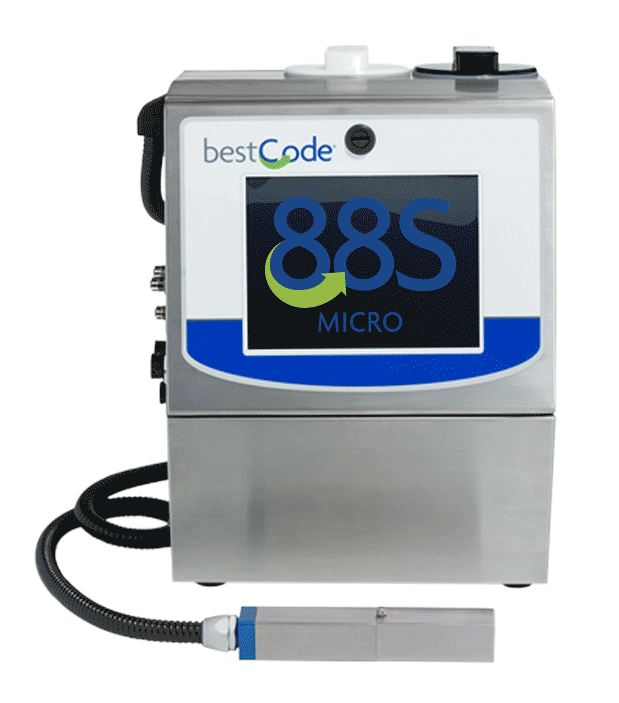

BestCode Model 88S Micro System
BestCode Model 88S Micro System
  • CleanStart™—automatically cleans printhead eliminating daily and weekly cleanings.
  • 10.4" Color Touch Screen—always on, vivid display with large intuitive buttons and status indicators.
  • OneTouch™—single step operator functions reduce operator steps.
  • Large Volume Ink Tanks—extend time between fluid additions to weeks or months.
  • On-the-Fly External Ink Filling—accomplished in less than a minute with no waste.
  • AutoOff™ Go Home Button—automate and eliminate time consuming end of day manual routines.
BestCode model 88S micro print

Model 88S Micro System Specifications

Technology Continuous Ink Jet (CIJ) Technology, Single Printhead Control
User Interface 10.4" (264 mm) Color LCD, Touch Screen, Icon based – Graphical User Interface (GUI)
Lines of Print 1 - 5 Lines, 32 pixel
Print Fonts 5, 7, 9, 12, 16, 19, 25, 32
Adjustable Print Height .025" (.6 mm) - .4" (10 mm)
Print Speed 1 Line: 1800 feet/minute (550 meters/minute), 2 Line: 475 feet/minute (145 meters/minute), 3 Line: 237 feet/minute (72 meters/minute, 4 Line: 164 feet/minute (50 meters/minute), 5 Line: 156 feet/minute (47 meters/minute)
Ink Throw Distance True Non-Contact Printing, .4" (10 mm)
Electronic Hardware 32 Bit ARM 9, 208 Mhz Processor
Memory Storage 4 GByte Solid State Drive, 15 MByte Flash, 128 Mbyte RAM, USB Interface (thumb drive)
Machine Interface RS232, Ethernet
Inputs 1 Photocell, 1 Photocell or Programmable Input, 1 Shaft Encoder, 8 Field Programmable Inputs, Remote Message Selection option – 256 possible selections
Outputs 4 Alarm Outputs, 1 Relay Output
Enclosure Stainless Steel Enclosure
Ingress Protection IP65
SmartFilter™ Life 10,000 hours
Operating Environment Temperature: 32° - 122° F (0°- 50°C), % Relative Humidity: 10 - 90% (non-condensing)
Electrical Requirements Auto Ranging: 100 - 240 VAC (3 Amp), Frequency 50 - 60 Hz, Power Consumption: 50 W
Compliance CE Certified, RoHS Compliant
Message / Code Creation Dynamic Message Storage (over 1000 Messages), WYSIWYG Message Editing, Drag / Drop Field Based Formatting, Multi-National (Unicode) Character Printing, Download Fonts, Integrated Font Editor, Real and Expiration Time and Date, Shift and Rollover Functions, Product and Batch Counting, Remote Count Resets, Download Graphics and Integrated Graphic Editor, Continuous and Repeat Print, Auto Reverse / Traverse Print
Operation Features Icon Based Operation, Single Button Start, Single Button Stop / Power Off, Password Security, Automatic Diagnostics, Error and Activity Logs, Service Reminders, Backup / Restore Functions, USB Load Firmware Updates, All Operator Languages, Download Languages
Ink Delivery SmartFill™ Ink Bottle: 32 oz (946 ml), SmartFill™ Makeup Bottle: 32 oz (946 ml)
Fluid Capacity Ink Capacity: 68 oz (2 liters), Makeup Capacity: 102 oz (3 liters)
Ink Types Quick Dry to Immediate, Complete Ink Range: MEK, Acetone, Ethanol and Blends
Ink Colors Black, Red, Blue, Invisible
Specialist Inks Thermo Color Change, Wet Bottle, Caustic Washable, Plastic, Eco-Friendly, Alcohol Resistant, Military Spec
Printhead Umbilical 10 feet (3 meters), 15 feet (4.5 meters) option
Printhead Options Right Angle Printhead
Printing Printhead Orientation – Omnidirectional
Weight 45 lbs (20 kg)
Optional Accessories Alarm Beacon, Photocells, Mountings, Shaft Encoder, AirFlow™ Positive Air Kit (for high dust), Printhead Wash Station
BestCode Model 88S High-Speed System

Why Micro Size Matters for Speed and Detail

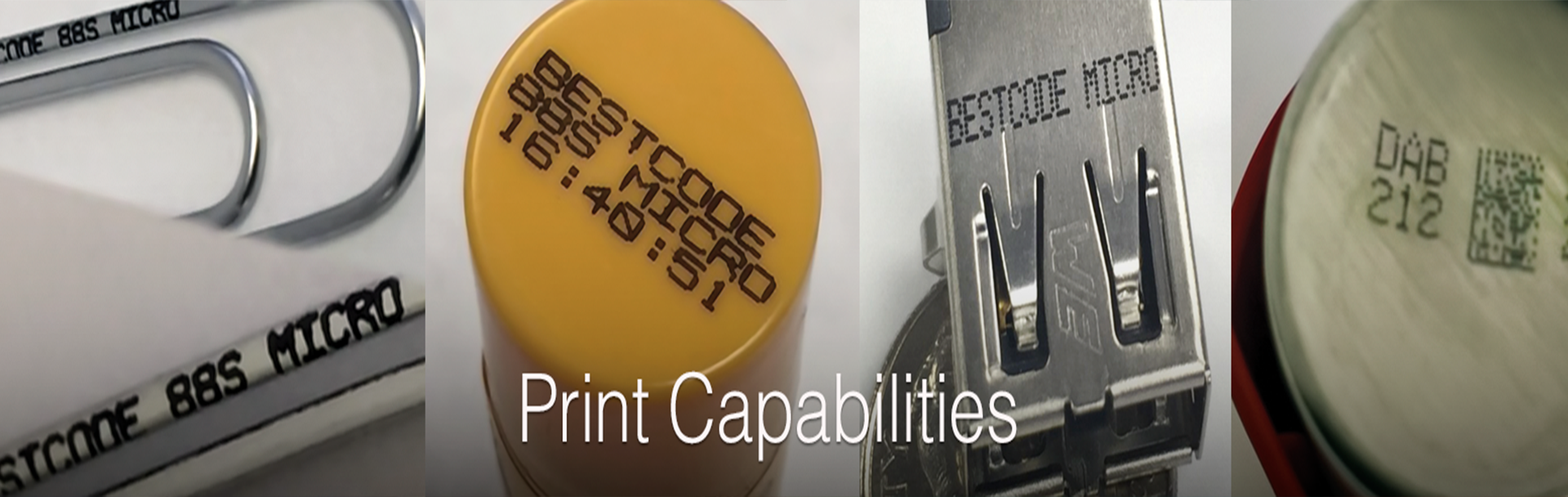

The best micro printer for demanding industrial environments, the BestCode model 88s micro, achieves clean, readable prints even on fast-moving production lines. The Model 88S Micro System supports printing 1 to 5 lines of high-resolution text, machine-readable barcodes, and crisp logos on various surfaces. Common substrates include plastic, metal, glass, and flexible packaging materials.

With its wide array of dye-based inks, including multiple color options, the system adapts easily to specific branding or contrast requirements, without sacrificing performance or reliability.

Contact Us

Designed with Operators in Mind

Every second counts in high-volume manufacturing, and the BestCode Model 88S Micro System doesn’t waste time or ink. It comes equipped with features that reduce the need for manual cleaning, minimize human interaction, and maximize uptime.

CleanStart™: This automatic printhead cleaning system eliminates the need for daily and weekly manual cleanings. It cleans itself, saving time and reducing print inconsistencies.

AutoOff™ Go Home Button: With a single tap, the system wraps up the day’s work, automating end-of-day shutdown routines.

On-the-Fly External Ink Filling: You don’t need to stop the line. Refill ink tanks in under a minute without spilling a drop.

Contact Us
coding and marking solutions

Operators will appreciate the 10.4" color touchscreen with an always-on interface and large, easy-to-read buttons. Combined with OneTouch™ controls, routine tasks are reduced to single-step operations.

Get in Touch With Intech Today

Intech Solution is committed to providing reliable and efficient coding solutions that meet the real demands of modern production environments.

Have questions or need a demo? Contact us today to see how this micro inkjet printer fits into your operation.
