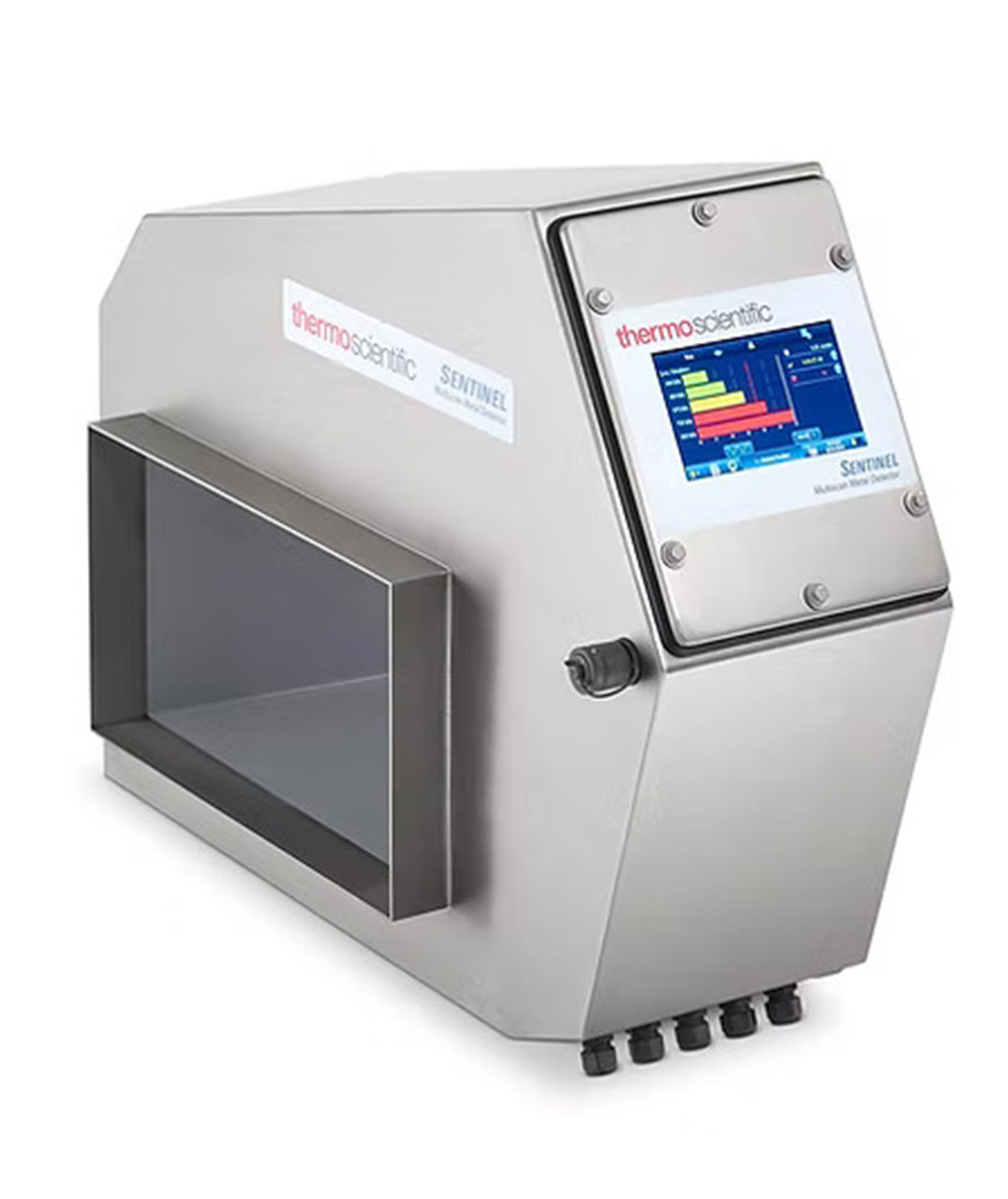

Thermo Scientific Sentinel 3000 Metal Detector

Why Choose the Thermo Scientific Sentinel 3000 Metal Detector for Your Production Line

When it comes to protecting your brand and delivering safe products, the Thermo Scientific Sentinel 3000 Metal Detector offers unmatched reliability. This system is specially designed to detect even the smallest metal contaminants in food and pharmaceutical applications.

Unlike traditional detectors that use a single frequency, the Sentinel 3000 operates using up to five frequencies at once.

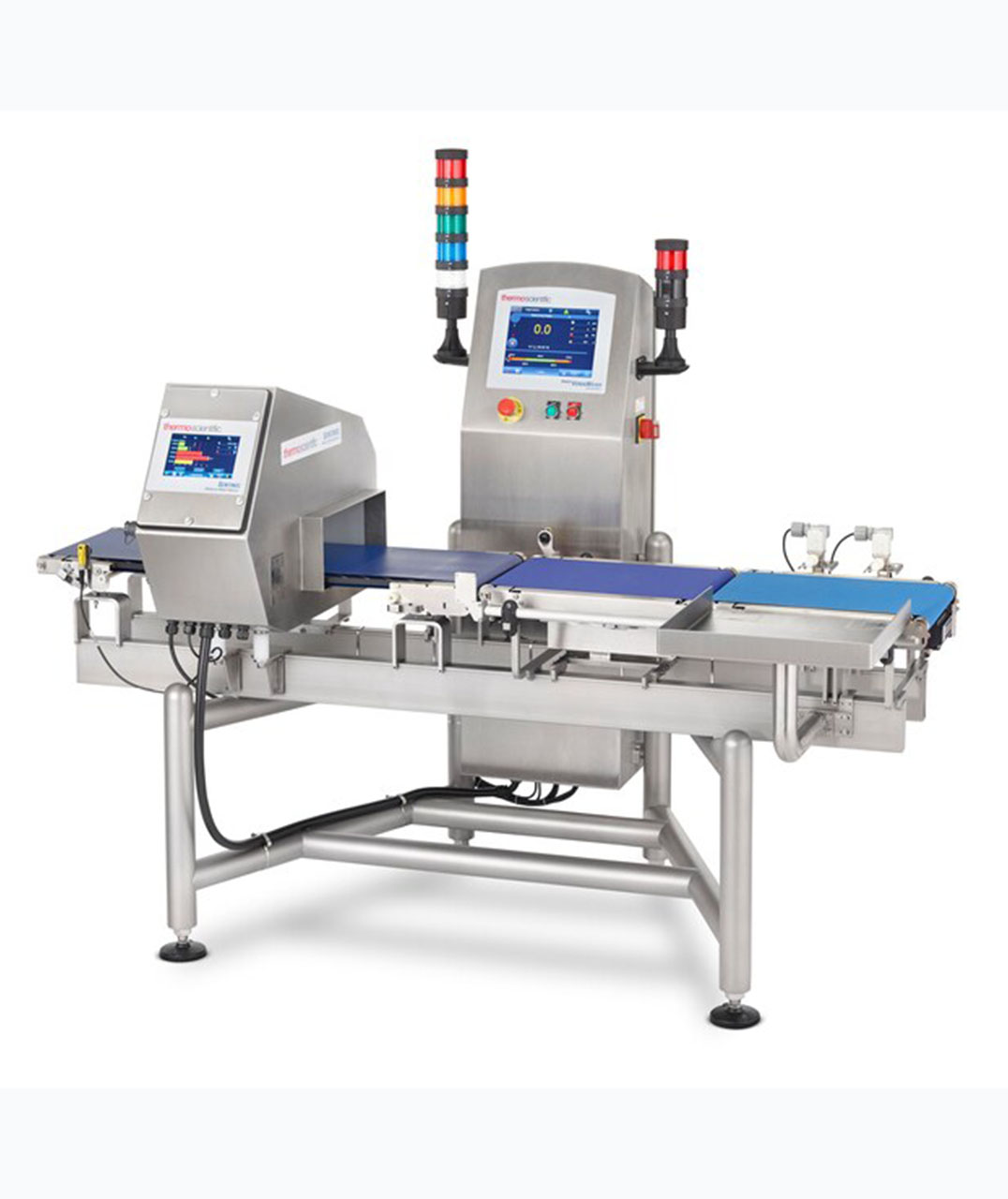

Thermo Scientific Sentinel 3000 is also known for its efficient integration with checkweighing systems, making it easier to monitor multiple aspects of quality control from one unit.

Contact Us
Specifications

Sentinel 3000 Metal Detector

Application and metal detection specifications (Sentinel 3000 metal detector model integral to the checkweigher)
Frequency Range 50 to 1000 kHz, Multiscan runs up to five frequencies
Sensitivity Detects contaminants up to 15% smaller in diameter than the Thermo Scientific™ APEX 300 metal detector (subject to application testing)
Footprint and Aperture Placement Refer to layout drawings, varies by aperture size and orientation
Aperture Sizes* Width: 100 to 450 mm, Height: 75 to 250 mm
Construction Stainless steel 304 straightline finished case and front panel
Metal Free Zone Standard 50 mm flanges to reduce the metal free zone
Human Machine Interface (HMI) 7 in (178 mm) diagonal, high-intensity color touchscreen
Product Speed 0.5 m/min (1.7 ft/min) to 80 m/min (262 ft/min)
Output Types 8 relay outputs; 250 volt AC 2 amp max. 50 volt DC 1 amp max 8 digital sourcing (PNP) outputs, 24VDC with capacity of any two at 500 mA, the rest at 30 mA average each
Output Allocation (Software Selectable) Reject 1, Reject 2, Fault, Alarm, Warning
Input Types 8 Inputs; Active 24VDC switch selectable as NPN or PNP
Input Allocation (Software Selectable) Speed Sensor, Infeed Photo Eye, Reject Confirmation 1 and Bin Full, External Alarm, External Reset
User Interface Languages English, Chinese, Dutch, French, German, Italian, Portuguese, Russian, Spanish, Czech
*Not all combinations are possible; contact Thermo Fisher Scientific for details.
Environmental, electrical and operational specifications
Metal Detector Ambient Temperature -10° to +40°C (+14° to +104°F)
Product Temperature in Aperture -10° to +55°C (+14° to +131°F)
Maximum Washdown Temperature 55°C (131˚F)
Relative Humidity 20% to 80% non-condensing, one way breather valve standard
Electrical Requirements 100 volts to 240 volts AC single phase plus earth ground; 50 Hz to 60 Hz, 0.6 to 1.2 amps
USB Port Watertight USB 2.0
Conformance tests and certifications
Protection Ratings IP69K (Sentinel metal detector only; refer to checkweigher ratings by model)
Conformance tests and certifications
Protection Ratings IP69K
Export and Safety cCSAus, CE
Manufacturing Quality ISO 9001 certified

Smart Design Meets Space-Saving Functionality in the Sentinel 3000

The Sentinel 3000 Metal Detector is built with practicality in mind. It fits perfectly on production lines where floor space is limited. By mounting directly on a checkweigher weigh frame, the detector minimizes the equipment footprint, helping manufacturers maintain a clean and efficient layout without removing any key function. This combination of features supports productivity and meets the demands of fast-paced processing environments.

The design is made with stainless steel for durability and easy maintenance. It features welded flanges that reduce the required metal-free zone, which makes installation simpler and more compact.

The user interface is a bonus. Its bright 7-inch color touchscreen gives operators access to settings, statistics, and alerts with just a few taps. The interface is intuitive, so even those with minimal training can run daily inspections without delays.

Enhanced Detection with Multiscan and Autolearn Features

The Sentinel 3000 Metal Detector is built with practicality in mind. It fits perfectly on production lines where floor space is limited. By mounting directly on a checkweigher weigh frame, the detector minimizes the equipment footprint, helping manufacturers maintain a clean and efficient layout without removing any key function. This combination of features supports productivity and meets the demands of fast-paced processing environments.

The design is made with stainless steel for durability and easy maintenance. It features welded flanges that reduce the required metal-free zone, which makes installation simpler and more compact.

The user interface is a bonus. Its bright 7-inch color touchscreen gives operators access to settings, statistics, and alerts with just a few taps. The interface is intuitive, so even those with minimal training can run daily inspections without delays.

Reliable Operation Under Real-World Production Conditions

What makes the Thermo Scientific Sentinel 3000 truly dependable is its ability to perform under the day-to-day demands of the factory floor.

With IP69K protection, the Sentinel 3000 Metal Detector is also ready for washdown environments. This makes it ideal for meat, poultry, or seafood processing facilities that follow strict hygiene protocols.

When choosing the Thermo Scientific Sentinel 3000 Metal Detector, you get a rugged machine built for accuracy, speed, and long-term performance in real-world production.

Stay ahead in product safety and compliance with Intech Solutions advanced coding and marking solutions. Choose the Sentinel 3000 Metal Detector for multiscan precision and compact reliability.
