Thermo Scientific APEX 100 Metal Detector

Economical metal detection for conveyor applications

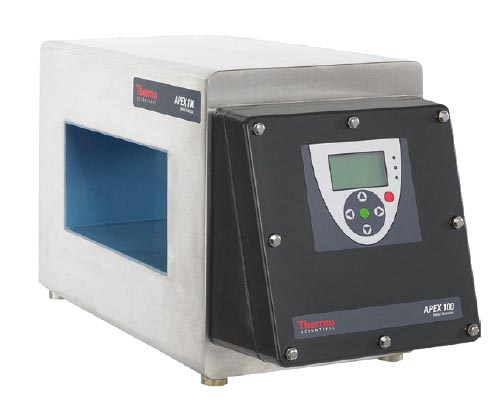

Meet the Thermo Scientific APEX 100 Metal Detector

Looking for a dependable and cost-friendly way to catch metal contaminants during food production? The Thermo Scientific APEX 100 Metal Detector is built just for that. It’s an entry-level machine, but don’t let that fool you, it’s made with the same core technology as other high-end models in the APEX line.

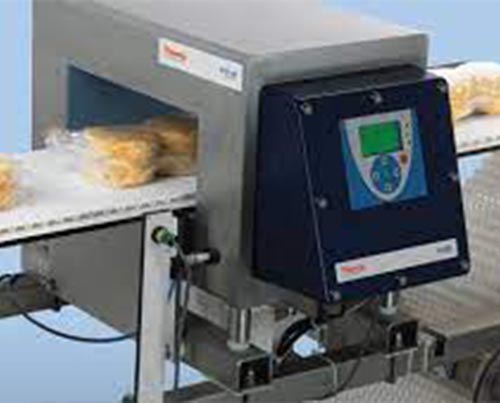

The Apex 100 Metal Detector is especially helpful in food factories where catching even the smallest metal piece matters. It can be used with conveyor belts, drop-through applications, and checkweigher systems.

With FDA-approved materials, easy setup, and smart features like Auto Learn and icon-based controls, the Thermo Scientific Apex 100 is perfect for companies that want reliability without too much fuss.

Contact Us
Features
  • Multi-coil design with high sensitivity and low false rejects
  • Dual frequency/dual gain operation for application flexibility
  • Intellitrack XR (IXR) advanced signal processing software
  • Standard range of aperture sizes to optimize performance
  • Standard epoxy-lined aperture and stainless-steel case
  • IP69K washdown rated to minimize the cost of ownership
  • All construction materials FDA approved
  • Easy to install, with all electronics integral to the metal detector
  • Unique icon-driven interface with multilingual Help and Auto Learn functions
Options:
  • Mounting conversion kits to make installation easy
  • Field compression flanges to minimize the metal-free zone
  • Remote control panel
  • Modbus serial and Ethernet communications
  • Alarm and fault output packages and reject indicators/ reset switches
  • Washdown isolation transformers to shield the metal detector from power line problems

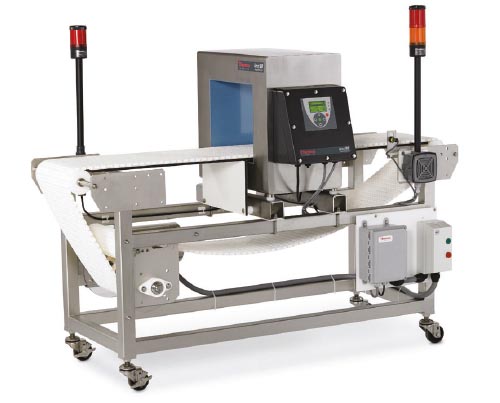

  • Thermo Scientific™ conveyor systems designed locally to your specifications

Why Apex 100 is a Smart Choice for the Food Industry

In food production, missing a single piece of metal can cost you customer trust and lead to expensive recalls. That’s where a metal detector for food industry applications like the Apex 100 Metal Detector plays a critical role. It’s designed with multiple detection coils that give it high sensitivity while reducing the chances of false alarms, which can waste product and time.

The Thermo Scientific Apex 100 Metal Detector uses dual frequency and dual gain technology. This lets it work with a variety of food products, from dry snacks to moist bakery items. The built-in Intellitrack XR software improves accuracy by adjusting to the product’s signal, helping reduce error and making the detection process more reliable.

With stainless steel construction and a washdown rating of IP69K, cleaning it is quick and safe, a must-have in environments that need frequent sanitizing.

Specifications

Thermo Scientific APEX 100 Specifications

Application and metal detection specifications
Frequency Range 50 to 460 kHz, one or two configured in the factory or by service in the field
Foot Pattern and Aperture Placement Refer to layout drawings; varies by aperture size and orientation
Aperture Sizes* Width: 50 to 1750 mm, Height: 50 to 600 mm
Construction Stainless steel 304 straightlined case and ABS plastic front panel
Human Machine Interface (HMI) Backlit display and touch panel with icons/help text
Product Speed 0.5 m/min (1.7 ft/min) to 1000 m/min (3,300 ft/min)
Output Types 6 Relay outputs; Relays: 250 volt AC 2 amp max. 50 volt DC 1 amp max
Output Allocation (Software Selectable) Reject 1, Reject 2, Fault, Alarm, Warning, QA Lamp/td>
Input Types 6 Inputs - Active 12VDC and auxiliary supply for input sensors, NPN sinking
Input Allocation (Software Selectable) Speed Sensor, Keylock, Product Select 1, Product Select 2, Infeed PEC, Reject Confirmation 1 and Bin Full, External Supression, External Alarm, External Reset
Communications Options ModBus serial or Ethernet modules
Help-Text Languages English, Spanish, French, German, Italian, Chinese, Czech, Russian, Polish, Thai, Korean and Brazilian Portuguese
*Not all combinations possible; contact Thermo Fisher for details.
Environment, electrical and operational specifications
Ambient Temperature -10° to 40°C (14° to 104°F)
Product Temperature in Aperture -10° to 55°C (14° to 131°F)
Maximum Washdown Temperature 80° C (176° F)
Relative Humidity 20% to 80% non-condensing
Electrical Supply 85 volts to 260 volts AC single phase plus earth ground; 47 Hz to 65 Hz, 100 watts maximum
Conformance tests and certifications
Protection Ratings IP69K
Export and Safety cCSAus, CE, ATEX zone 22
Manufacturing Quality ISO9001 certified
Apex 100 Metal Detector

Simple Operation Meets Durable Design

One of the best things about the Apex 100 Metal Detector is how easy it is to use. It has a simple, icon-based screen that doesn’t require special training to understand. Your team can pick it up quickly, reducing mistakes and improving the speed of your production line.

Installation is just as easy. Since all electronics are built right into the unit, you don’t need to worry about setting up extra parts. There are optional kits available to help it fit into your current conveyor system.

The casing is made from stainless steel and lined with epoxy, which means it can handle rough use and still keep performing day in and day out. And because the Thermo Scientific Apex 100 is FDA compliant, you don’t have to second-guess material safety. For extra convenience, optional remote panels and alarm packages can be added to help you stay on top of faults or rejected products during fast-paced production.

Keep Your Production Safe with Thermo Scientific Technology

The Thermo Scientific Apex 100 Metal Detector isn’t just about spotting metal, it’s about helping your business avoid big problems before they happen. Metal contamination can come from many sources. With this detector in place, you add an extra layer of defense to keep your brand’s reputation strong.

For added protection, install isolation transformers to reduce power-related issues, keeping the detector working steadily.

All in all, the Thermo Scientific Apex 100 Metal Detector brings together smart detection, easy controls, and rugged design, giving you the tools to meet quality goals and customer expectations with confidence.
