Thermo Scientific APEX 300 Metal Detector

Reliable Detection with the APEX 300 Metal Detector

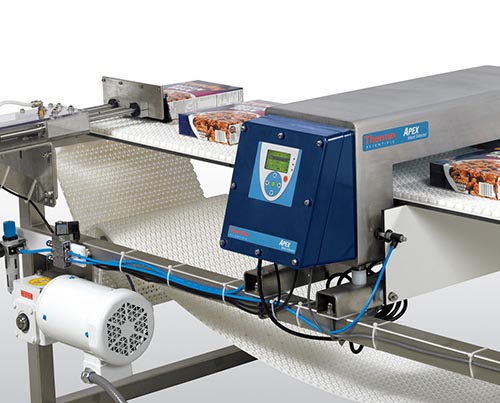

If you’re looking for dependable, high-sensitivity metal detection in a compact unit, the APEX 300 Metal Detector delivers just that. Designed by Thermo Scientific, this model suits a wide variety of applications, from food processing lines to pharmaceutical and packaging setups.

The real strength of the Thermo Scientific APEX 300 Metal Detector lies in its multi-coil design. With dual-frequency and dual-gain options, it adapts easily to your product types and operating conditions.

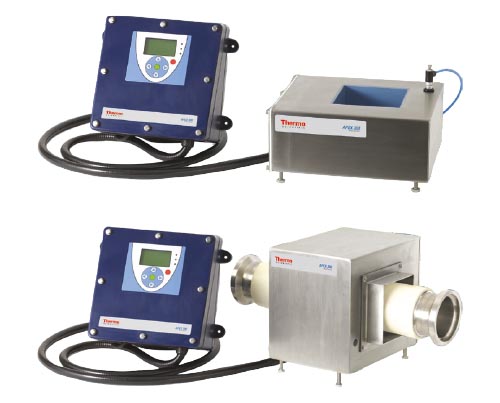

Its signal processing is powered by Intellitrack XR, helping it perform consistently in challenging environments. With various aperture sizes and configurations, including versions made specifically for pipeline and gravity setups, the Thermo Scientific APEX 300 is a flexible choice that doesn’t compromise on quality or performance.

Contact Us
Specifications

Thermo Scientific APEX 300 Specifications

Application and metal detection specifications
Frequency Range 50 to 460 kHz, one or two configured in the factory or by service in the field
Foot Pattern and Aperture Placement Refer to layout drawings, varies by aperture size and orientation
Aperture Sizes* Width: 75 to 550 mm, Height: 50 to 400 mm
Construction Stainless steel 304 straightlined case and ABS plastic front panel
Human Machine Interface (HMI) Backlit display and touch panel with icons/help text
Product Speed 0.5 m/min (1.7 ft/min) to 1000 m/min (3,300 ft/min)
Output Types 6 Relay outputs; Relays: 250 volt AC 2 amp max. 50 volt DC 1 amp max
Output Allocation (Software Selectable) Reject 1, Reject 2, Auditcheck, Fault, Alarm, Warning, QA Lamp
Input Types 6 Inputs - Active low with auxilary supply for input sensors , NPN sinking
Input Allocation (Software Selectable) Speed Sensor, Keylock, Product Select 1, Product Select 2, Infeed PE, Reject Confirmation 1 and Bin Full, External Supression, External Alarm, External Reset
Communications Options ModBus serial or Ethernet modules
Help-Text Languages English, Spanish, French, German, Italian, Chinese, Czech, Russian, Polish, Thai, Korean and Brazilian Portuguese
*Not all combinations possible; contact Thermo Fisher for details.
Environment, electrical and operational specifications
Ambient Temperature -10° to 40°C (14° to 104°F)
Product Temperature in Aperture -10° to 55°C (14° to 131°F), Kynar® liner option -10° to 120° C (14° to 248° F)
Maximum Washdown Temperature 80° C (176° F), optional Kynar liner cannot be washed down
Relative Humidity 20% to 80% non-condensing
Electrical Supply 85 volts to 260 volts AC single phase plus earth ground; 47 Hz to 65 Hz, 100 watts maximum
Conformance tests and certifications
Protection Ratings IP69K
Export and Safety cCSAus, CE, ATEX zone 22
Manufacturing Quality ISO9001 certified

Designed for Convenience and Durability

The Thermo Scientific APEX 300 Metal Detector addresses this with thoughtful design elements that make setup and upkeep easier for your staff. All electronics are built into the unit itself or the control panel, meaning fewer parts to connect and less hassle during installation.

The device comes with an epoxy-lined aperture and a solid stainless-steel case, offering long-lasting protection against wear and contamination. All the materials used in construction are FDA-approved, making the APEX 300 Metal Detector a trusted choice for food and pharmaceutical settings.

For busy operators or multi-shift teams, this feature alone can save time and reduce error rates. Add in a standard remote control panel, and it’s clear this metal detector was built with real-world challenges in mind.

Optional Features that Add Value

To make the APEX 300 Metal Detector even more adaptable, Thermo Scientific offers a wide range of optional upgrades. These aren’t just bells and whistles, they’re practical add-ons that improve performance, simplify monitoring, and help with compliance audits.

One such feature is AuditCheck, an automatic performance verification tool that runs self-checks to confirm everything is working properly. It’s a simple way to make sure you stay compliant without interrupting production. You can also install mounting conversion kits that make swapping in the unit to existing setups easier, and field compression flanges that reduce the metal-free zone required for operation.

For those who want real-time communication with the detector, there’s support for Modbus serial and Ethernet connections.

Power stability is key for metal detectors, and Thermo Scientific APEX 300 takes that into account too. Optional washdown isolation transformers protect the unit from sudden electrical issues. And if you’re working with gravity-fed systems, the pivot locking frame helps with stability, use, and cleaning access.

Ensure unmatched detection accuracy in your production line with the best industrial printing machine support system from Intech Solution. The APEX 300 Metal Detector is built for quality-driven operations.
