SAVEMA Thermal Transfer Overprinters

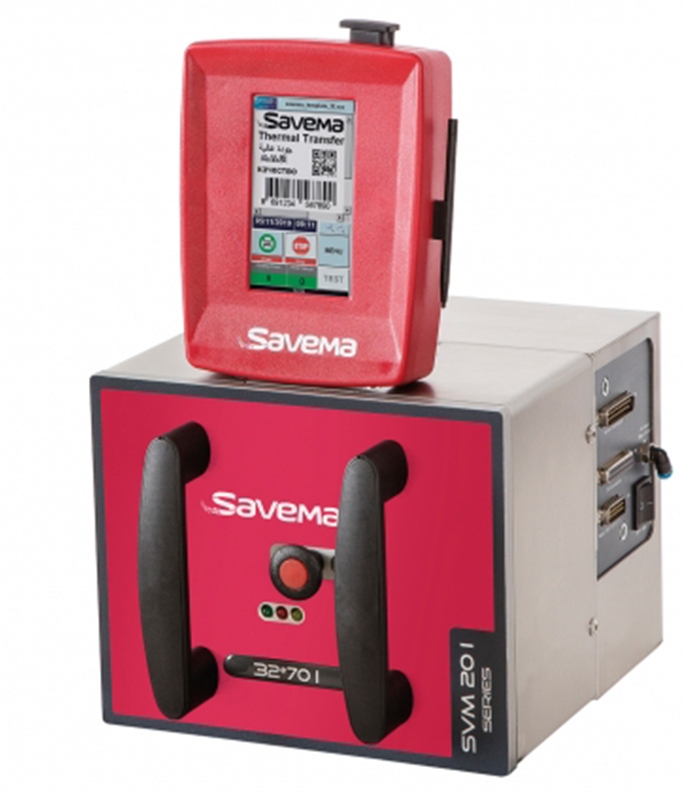

High-Speed, High-Quality Coding with SAVEMA 32*70

If you’re searching for a compact, dependable solution for on-the-go best industrial printing machine , the SVM 32*70 is built just for that. This Savema Intermittent TTO Printer is known for printing crisp, clear codes, at impressive speeds, without skipping a beat.

What makes it stand out? First, the print speed of 50 to 500 mm/sec lets you run up to 330 prints per minute, fast enough for most industrial settings. The 300 dpi resolution means your barcodes, batch numbers, and expiration dates come out clean and easy to scan. It’s compact, weighing just under 10 kg and sized to fit into tight workspaces.

What makes it stand out? First, the print speed of 50 to 500 mm/sec lets you run up to 330 prints per minute, fast enough for most industrial settings. The 300 dpi resolution means your barcodes, batch numbers, and expiration dates come out clean and easy to scan. It’s compact, weighing just under 10 kg and sized to fit into tight workspaces.

For businesses that need flexibility, the SVM 32*70I supports different ribbon widths (22mm, 35mm) and long ribbon lengths up to 600 meters. If you’re in food, pharma, or manufacturing, this Savema TTO printer fits right in.

Contact Us
Specifications

32*70 I / Thermal Transfer Overprinters

Print Area 32 mm x 76 mm
Print Speed 50 - 500 mm/sec
Production 330 prints/min
Ribbon Widths & Length 22mm, 35 mm (0,9” – 1,4”) & 600 meters (656yards) loaded ribbon
Power Supply 100-240V 50-60 Hz
Air Supply (Bar) Min. 1 bar – Max. 5 bar
Input/Outputs Print Signal/Fault Signal, Busy Signal
Output Messages Update Error, Contact Error, Ribbon Break / Not Found Error, Remaining Ribbon Quantity, Number of Printed Templates, Number of Prints per Minute
Connection Types Relay(NPN, PNP) – Photocell(NPN, PNP)
Communications RS-232, Ethernet, USB
Ribbon Save Modes Vertical & Horizontal Ribbon Save Modes
Advanced Control 4.3” Touch Screen Control, Template Changing while Running, Print Position Adjustment, Contrast, Print Delay, Template-Specific Adjustment, Internal Contact Signal, Multi-print Contact Signal, Template Shifting, Template Rotation
Operator Interface 4.3” 272x480 Pixels Resolution, Full-color display, Password protection on menus, Multi-language(18) support
Weight (Printer) 9,4 Kg.
Dimensions 180mm H x 220mm W x 222mm D
SAVEMA Thermal Transfer Overprinters (TTOs)

Intuitive User Experience with Smart Controls

What good is performance if it’s hard to operate? The Savema Intermittent TTO Printer addresses that with a user-friendly 4.3” touchscreen. You can adjust print settings like contrast and position, switch templates on the fly, and even rotate or shift templates, all with just a few taps.

The printer supports 18 languages, making it easy to use in multi-national production floors. On top of that, you can track the number of prints per minute, check for ribbon status, and troubleshoot with detailed output messages like ribbon break alerts or update errors.

Need a system that plays well with others? The SVM 32*70I connects via RS-232, USB, and Ethernet, and supports both relay and photocell connections (NPN, PNP). For developers, SPPL command support allows advanced control and integration.

Versatile Printing with Rich Software Features

The SVM 32*70I isn’t just about speed, it’s about flexibility in what and how you print. Thanks to Savema’s SAYASIS software, you can design and print templates that include dates, times, custom text blocks, logos, and 1D/2D barcodes, including GS1 standards.

One of its strongest points is barcode variety. This Savema Intermittent TTO Printer supports all major formats, from EAN-13 and Code 128 to QR codes, PDF417, and even GS1-Databar. Whatever your industry labeling needs are, chances are it’s already covered.

With the Savema TTO printer, printing isn’t just fast, it’s smart, detailed, and scalable.

Built to Handle Demanding Environments

The SVM 32*70 is built tough. It works reliably in a wide temperature range, 1°C to 55°C, which covers most factory and warehouse environments. The printer is solidly constructed, with a compact form that fits neatly into crowded production lines.

You only need a minimum of 1 bar of air pressure for it to run, and it accepts up to 5 bars, making it easy to pair with your existing setup. The Savema TTO printer also supports real-time feedback, so you always know what’s going on with your system. Busy signal, fault signal, ribbon detection, it keeps you in the loop.

If you’re in need of an industrial-grade coding solution that won’t break stride under pressure, the SVM 32*70I is a smart pick.
