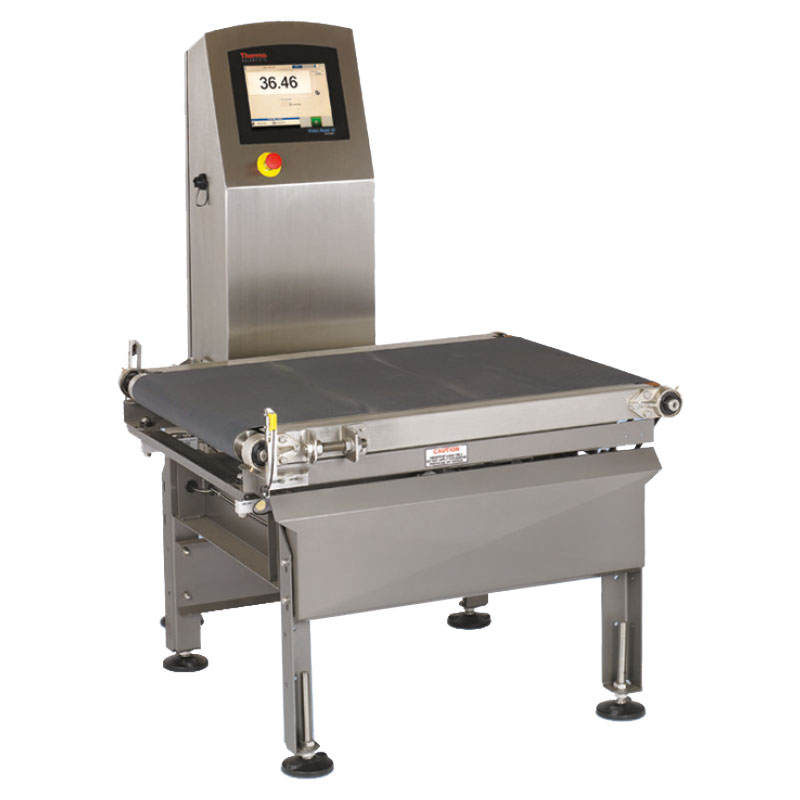

Thermo Scientific Versa Frame 44H

Built Tough for Heavy-Duty Performance

Designed to handle packages weighing up to 110 lbs, this checkweigher brings both strength and precision to your production line. Whether you’re moving big boxes, bags, or barrels, this system is built to keep your workflow steady and efficient.

With its heavy-duty frame, the Versa Frame 44H can withstand demanding environments without losing accuracy. From food production to logistics, this equipment adapts to a variety of uses, all while maintaining consistent output. Its rugged frame is perfect for factories that demand consistent performance from their machinery without constant maintenance or recalibration.

Contact Us
Specifications

Thermo Scientific Versa Frame 44HB

General Specifications
Weigh Range Up to 110 lbs
Speed 35-300 fpm (11 to 91 mpm)
540 fpm (164 mpm) on XL and XXL systems
Operating Temperature +14°F to +105°F (-10°C to +40°C)
Package Length Up to 45 in (1143 mm) depending on product rate, weightable length and belt speed
Package Pitch (spacing) Weightable length plus 1 in (25.4 mm) or more (See B dimensions in drawing)
Line Height Standard: 18 in to 32 in (457 mm to 812 mm)
Optional: 34 in to 50 in (863 mm to 1270 mm), 2 in (51 mm) increments with a ±2 in (±51 mm) adjustment
Frame Construction Painted Steel-It; Optional stainless steel
Conveying Media Fabric Belt—USDA-approved whole belting or black waffletop material
Weight Sensing System Four (4) strain gauge loadcells, stainless steel construction
Photo Eye Emitter/receiver photo eye arrangement
Junction Box NEMA 4X fiberglass enclosure
Power Single Drop 115 VAC/60/1. Control power consumption, 300 VA. 115 VAC 60 Hz/1 phase motor standard; Variable speed or 230, 480 VAC/60 Hz/3 phase optional
Harsh Washdown Environment Option Includes stainless steel construction, washdown motor and environmentally sealed loadcells
Compatible Controls Thermo Scientific Versa

User-Friendly System with Smart Controls

Operating a checkweigher shouldn’t feel like learning a new skill. The Versa Frame 44H simplifies your day-to-day life with a color touch screen that’s easy to deal with. It runs on a familiar Windows-based system and supports multiple languages, making it ideal for teams with diverse workforces.

This versa frame checkweigher also gives operators quick access to all major functions, so adjustments can be made in real-time with minimal training. With electronics that are responsive and designed for industrial use, this checkweigher fits seamlessly into modern production lines without slowing down your pace.

Thermo Scientific Versa Frame 44HB

Flexible Integration with Long-Term Value

Already using a Frame 44HB from previous installations? No need to replace the full unit. Intech Solution offers a controller upgrade kit that modernizes older models. With this kit, you can extend the life of your system while enjoying the latest features available in the Versa Frame 44H lineup.

Thanks to its modular design, the Thermo Scientific Versa Frame 44H works well in different line configurations. It also comes in XL and XXL sizes to accommodate a wide range of package types. This flexibility means you don’t have to compromise between package size and weighing accuracy.

Designed for Real-World Needs

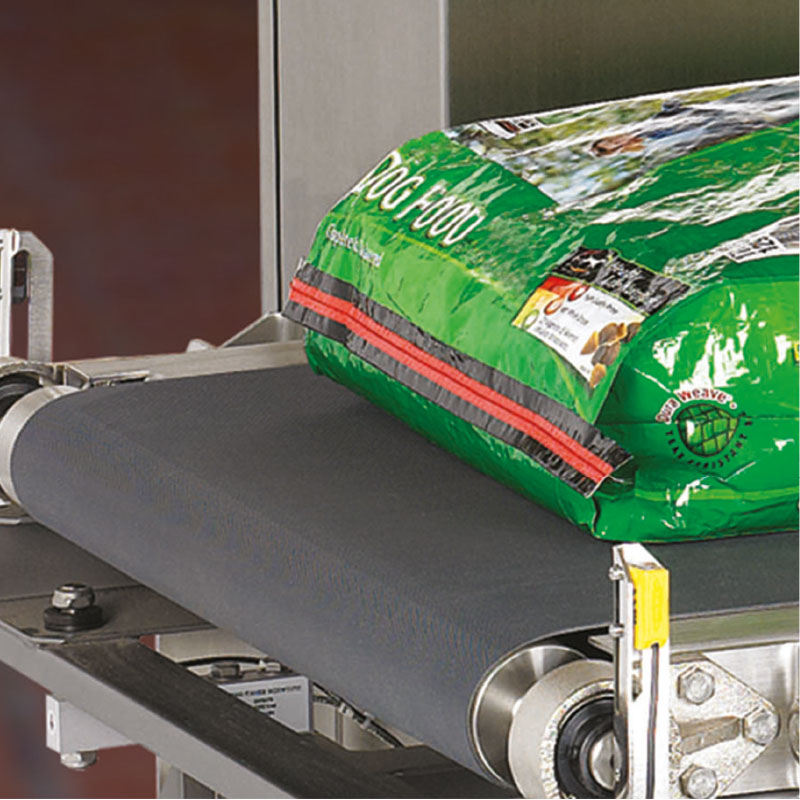

The Versa frame checkweigher isn’t just about high specs, it’s about delivering performance where it counts. It features a USDA/FDA approved food-grade belt, making it suitable for raw or frozen foods, sealed bags, and heavy containers alike. It’s also fast, handling up to 100 packages per minute depending on size.

With speeds of up to 300 feet per minute, the Thermo Scientific Versa Frame 44H helps boost output without sacrificing precision. From factory floors to food processing units, this checkweigher keeps your operations compliant, efficient, and ready for growth.

Streamline your heavy-duty production with Intech Solution’s industrial coding solutions. The VersaFrame 44H delivers accuracy, speed, and durability, all in one system.
