Name: Model 88S High Speed System
Brand: BestCode
Rating: 5 (14 reviews)

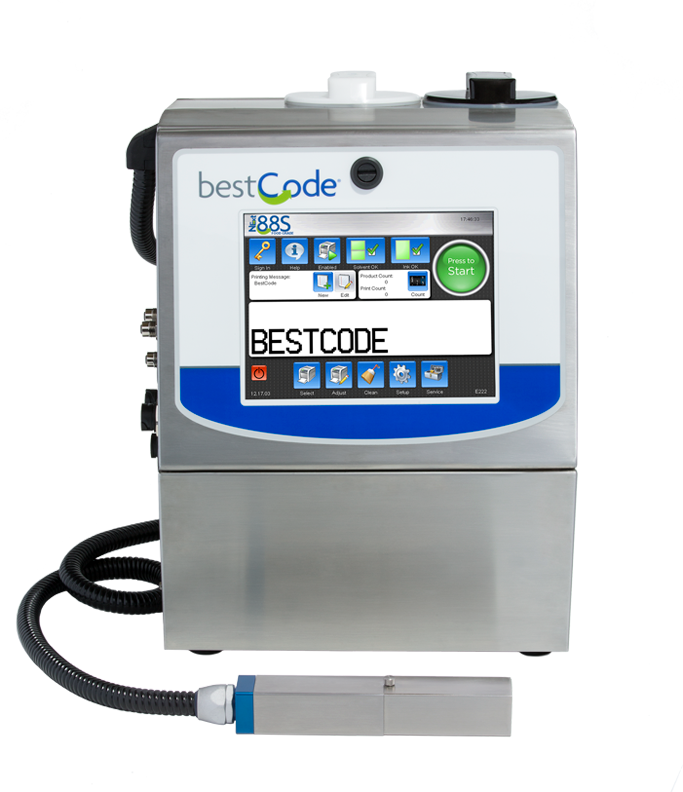

Meet the Model 88S High-Speed System

The Model 88S High-Speed System by Intech Solution is designed for high-demand environments where reliability, speed, and clarity are non-negotiable. Developed for bottling lines, breweries, and large-scale production facilities, this system enables seamless high-speed inkjet printing on glass, plastic, and metal containers.

With the capability to print one, two, or three lines of text, barcodes, or logos in real time, the BestCode Model 88S ensures consistent output at impressive speeds.

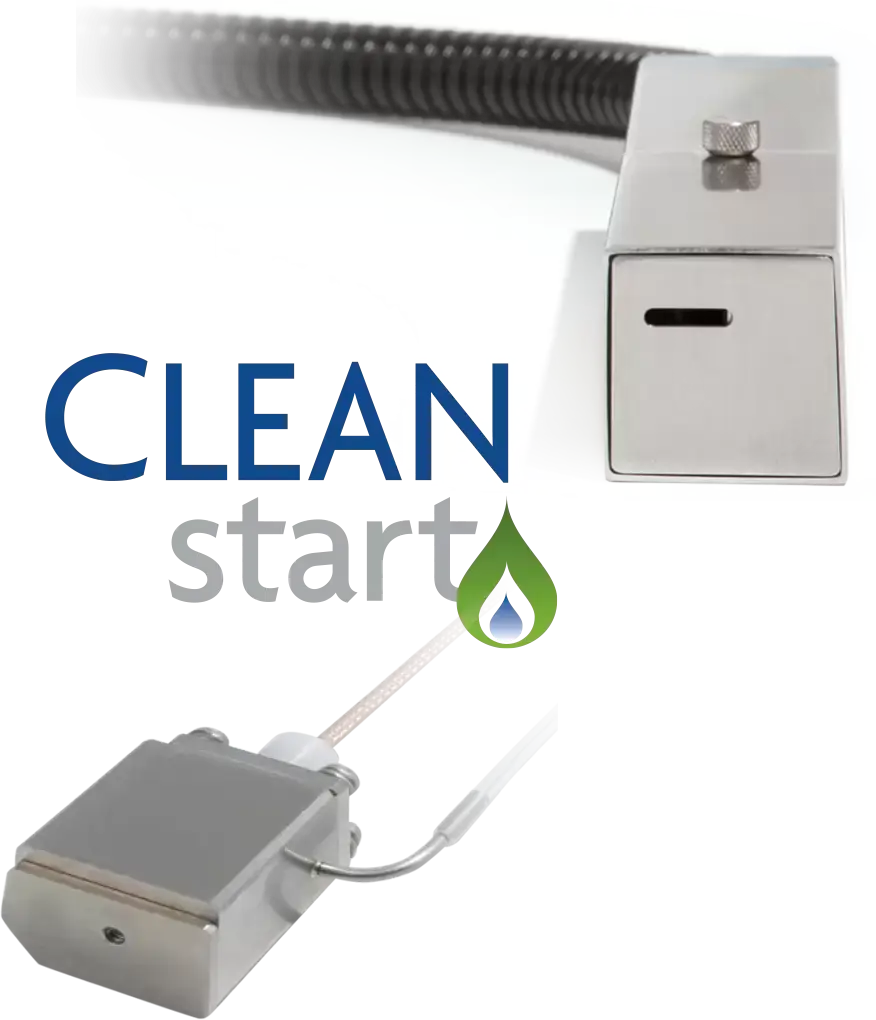

CleanStart™—automatically cleans printhead eliminating daily and weekly cleanings.
10.4" Color Touch Screen—always on, vivid display with large intuitive buttons and status indicators.
OneTouch™—single step operator functions reduce operator steps.
Large Volume Ink Tanks—extend time between fluid additions to weeks or months.
On-the-Fly External Ink Filling—accomplished in less than a minute with no waste.
AutoOff™ Go Home Button—automate and eliminate time consuming end of day manual routines.

Model 88S High Speed Specifications

Technology	Continuous Ink Jet (CIJ) Technology, Single Printhead Control
User Interface	10.4" (264 mm) Color LCD, Touch Screen, Icon based – Graphical User Interface (GUI)
Lines of Print	1 - 5 Lines, 32 Pixel
Print Fonts	5, 7, 9, 12, 16, 19, 25,32
Adjustable Print Height	.06" (1.5 mm) - .50" (12 mm)
Print Speed	1 Line: 1600 feet/minute (500 meters/minute), 2 Line: 420 feet/minute (130 meters/minute), 3 Line: 210 feet/minute (65 meters/minute), 4 Line: 150 feet/minute (45 meters/minute), 5 Line: 135 feet/minute (42 meters/minute)
Ink Throw Distance	True Non-Contact Printing, .5" (12 mm) - 1" (25mm)
Electronic Hardware	32 Bit ARM 9, 208 Mhz Processor
Memory Storage	4 GByte Solid State Drive, 15 MByte Flash, 128 Mbyte RAM, USB Interface (thumb drive)
Machine Interface	RS232, Ethernet
Inputs	1 Photocell, 1 Photocell or Programmable Input, 1 Shaft Encoder, 8 Field Programmable Inputs, Remote Message Selection option – 256 possible selections
Outputs	4 Alarm Outputs, 1 Relay Output
Enclosure	Stainless Steel Enclosure
Ingress Protection	IP65
SmartFilter™ Life	10,000 hours
Operating Environment	Temperature: 32° - 122° F (0°- 50°C), % Relative Humidity: 10 - 90% (non-condensing)
Electrical Requirements	Auto Ranging: 100 - 240 VAC (3 Amp), Frequency 50 - 60 Hz, Power Consumption: 50 W
Compliance	CE Certified, RoHS Compliant
Message / Code Creation	Dynamic Message Storage (over 1000 Messages), WYSIWYG Message Editing, Drag/Drop Field Based Formatting, Multi-National (Unicode) Character Printing, Download Fonts, Integrated Font Editor, Real and Expiration Time and Date, Shift and Rollover Functions, Product and Batch Counting, Remote Count Resets, Download Graphics and Integrated Graphic Editor, Continuous and Repeat Print, Auto Reverse / Traverse Print
Operation Features	Icon Based Operation, Single Button Start, Single Button Stop / Power Off, Password Security, Automatic Diagnostics, Error and Activity Logs, Service Reminders, Backup / Restore Functions, USB Load Firmware Updates, All Operator Languages, Download Languages
Ink Delivery	SmartFill™ Ink Bottle: 32 oz (946 ml), SmartFill™ Makeup Bottle: 32 oz (946 ml)
Fluid Capacity	Ink Capacity: 68 oz (2 liters), Makeup Capacity: 102 oz (3 liters)
Ink Types	Quick Dry to Immediate, Complete Ink Range: MEK, Acetone, Ethanol and Blends
Ink Colors	Black, Red, Blue, Green, Yellow, Orange, Invisible
Specialist Inks	Thermo Color Change, Wet Bottle, Caustic Washable, Plastic, Eco-Friendly, Alcohol Resistant, Military Spec
Printhead Umbilical	10 feet (3 meters), 15 feet (4.5 meters) option
Printhead Options	Right Angle Printhead
Printing	Printhead Orientation – Omnidirectional
Weight	45 lbs (20 kg)
Optional Accessories	Alarm Beacon, Photocells, Mountings, Shaft Encoder, AirFlow™ Positive Air Kit (for high dust), Printhead Wash Station

Designed for the Demands of Industrial Bottling

The BestCode Model 88S High-Speed System stands apart in applications where speed and endurance intersect. Operating in cycles that range from one shift to full 24/7 schedules, the Model 88S High-Speed System is engineered to support annual workloads of 4,000 to 8,760 hours.

Not only does it maintain clarity and quality across substrates, but it also supports a wide variety of ink types. Whether you require caustic-washable inks for reusable glass bottles or soft-pigmented inks for plastics, the BestCode Model 88S delivers exceptional results every time.

Smarter Control with Less Human Error

Speed isn’t the only priority, that’s why the Model 88S High-Speed System features built-in automation tools that simplify operation and reduce operator error. A bright, always-on 10.4" color touchscreen makes it easy to monitor performance, access settings, and view system status at a glance.

With OneTouch™ controls, even complex functions are simplified into single-step actions. This design significantly reduces the time it takes for training and daily operation, ensuring your workforce can focus on productivity instead of troubleshooting.

Clean, Continuous Operation – No Daily Maintenance Hassles

The BestCode Model 88S High-Speed System is designed to operate continuously with minimal maintenance interruptions. Its CleanStart™ system automatically cleans the printhead, removing the need for daily or weekly manual cleanings. This not only reduces maintenance time but also ensures consistent print quality during long runs.

Large-capacity ink tanks mean you can go weeks, or even months, without refilling. And when it’s finally time to add more ink, the on-the-fly external ink-filling system lets you do it in under a minute with zero waste. This feature alone makes the Model 88S High-Speed System a smart investment for companies looking to reduce consumable waste and maximize uptime.

Why the BestCode Model 88S High-Speed System Is the Industry Standard

The Model 88S High-Speed System isn’t just another industrial inkjet printer. It’s a reliable workhorse for the modern production line. When considering a system that matches the speed of your production line, the BestCode Model 88S High-Speed System stands as a top-tier solution.

Intech Solution understands the needs of industries where every second counts. That’s why we back the Model 88S High-Speed System with expert support, high-quality consumables, and a commitment to long-term operational success. Make the smart switch to a system that works as hard as you do.

Contact us today to request a demo or learn how the BestCode Model 88S High-Speed System can transform your production line.
